Self-Balancing Board Remote control Bluetooth Replacement

Geschrieben von: Smilzo
  • Kommentare: 4
Self-Balancing Board Remote control Bluetooth Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

  1. JQn5ZgGYpwh3oBpR

    • Remove 10 screws with a cross-head screwdriver to access a part of the hoverboard.

    • The electronic boards are mirrored on both sides, so you can choose one of the 2 by evaluating which of these are available for Bluetooth setup

  2. OlLnNIwG3EAUvEI5

    • unhook the lighting and canbus cables to remove the cover

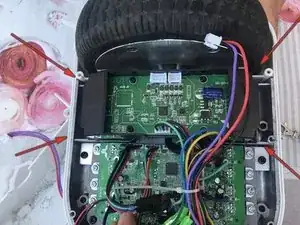

  3. IJmIpWomjaMF1BQh

    • Remove the 4 screws that hold the electronic card holder

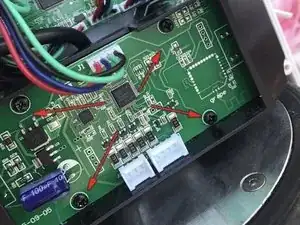

  4. frThJOwkSxpMDOO6

    • Rimuovere le 4 viti che fissano la scheda al supporto

  5. lcVvhKQudkwD2gkw

    • Correct position for welding the Bluetooth card.

  6. LeQERKeLXT1Yvqfk

    • Using a tin soldering station, secure the 4 pins of the Bluetooth card on the hoverboard board

    • Before soldering the boards I recommend checking the functionality of the Bluetooth card simply by inserting the pins that is sufficient

Abschluss

To reassemble your device, Follow these instructions in reverse order.

Tinte & Feder

Smilzo

Mitglied seit: 09/11/13

10092 Reputation

4 Kommentare

Hello! Would it be possible to know where to get that bluetooth module? I would like to try that one my hoverboard but cant find the needed part.

Nix Mathy -

Ciao,puoi cercare su EBay AliExpress Wish ed altri store cinesi

Smilzo -

Well after 5 days of search on ali.. ebay.. bangood.. amazon. I still haven't found the good part.

I've ask a lots of sellers and they all replied the module they sell is only for music no app control :(

Nix Mathy -

Nix Mathy devi cercare bene come parola chiave.io li vedo su tanti store

telecomando self balance hoverboard

https://www.amazon.it/Hoverboard-Telecom...

https://www.ebay.it/itm/REPLACEMENT-REMO...

Smilzo -
