Replace the thermal fuse on a GHD Classic V

Geschrieben von: Caplou.com
  • Kommentare: 0
Replace the thermal fuse on a GHD Classic V

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

Use this guide only for GHD Classic V, Mini and Max when they are unresponsive.

  1. WIgfnXfcXYnGMPd6
    WIgfnXfcXYnGMPd6
    ZETECavxrPFZxdSO

    • Before you begin, unplug your ghd hair straightener.

    • Remove the two plastic hinge covers located on each side of the ghd by using a thin and flat spudger.

    • The plastic hinge covers are attached via two clips. Be careful not to break the clips.

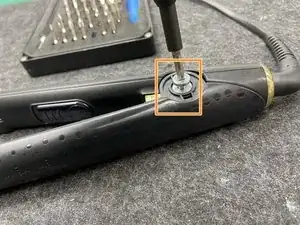

  2. YEUrqv5E46ZXtg46
    YEUrqv5E46ZXtg46
    TFQSiTSsZqV3kVGu

    • Unscrew the right side hinge support.

    • Remove the centering tube.

    • If unscrewing proves difficult, try using a Philips screwdriver on both sides of the tube.

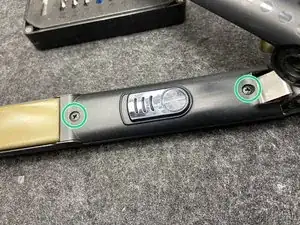

  3. Sed6FQfYIJTDPDAc

    • Unscrew both Philips screws to remove the cover.

    • The heat fuse is on the power button's side.

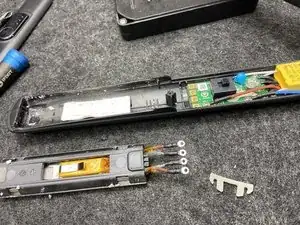

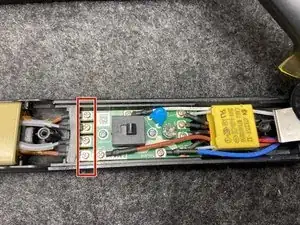

  4. vrbFdVXm1iHP5LCT
    vrbFdVXm1iHP5LCT
    RtrTPH1rkL2CCCDu

    • Unscrew the 4 screws from the the plate and then remove it.

    • The outer screws corresponds to the "Fuse" fuse. The center screws corresponds to the ceramic plate fuse.

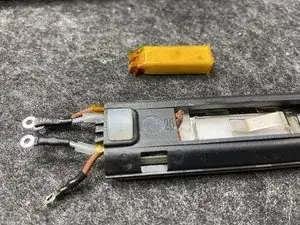

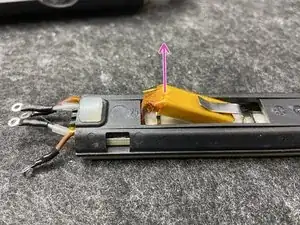

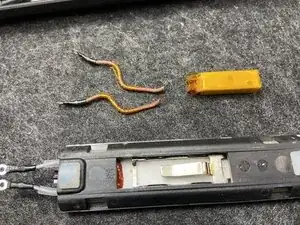

  5. owcXlMVYXrDxPuaJ
    owcXlMVYXrDxPuaJ
    ObFIGBDSjTR2URCX
    EEnwqDUDLQCSoyat

    • Slowly lift the fuse and cut the two cables with your wire cutter.

    • You can now remove the fuse from its compartment as well as the two cables by pulling on them towards the front.

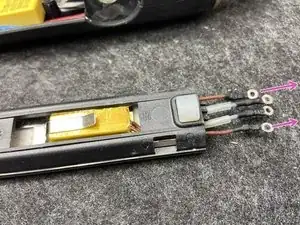

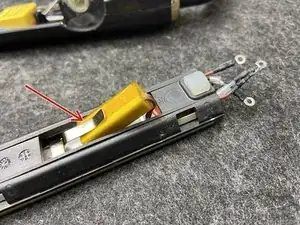

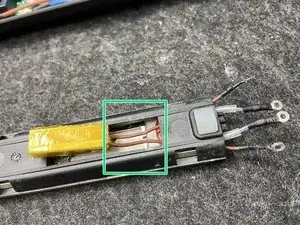

  6. KKwkH6bsVFrx3oED
    KKwkH6bsVFrx3oED
    4FKQZxKl1QBsjJIn
    cIlxYHKfGacQejmI

    • Start by inserting your new fuse's cables and let about a centimeter of slack.

    • Insert the end of the fuse.

    • Pull on both cables outward to completely fit the fuse in its compartment.

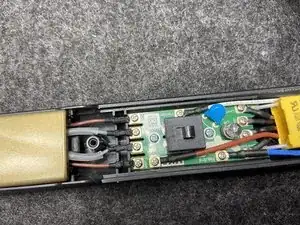

  7. SjIIoVTTGDAqRv2X

    • Watch out: the two white cables are screwed in the center; the brown cables are screwed at the outer posts.

Abschluss

To reassemble your device, follow these instructions in reverse order.
