Microsoft Surface Pro Akku austauschen

Geschrieben von: Jonathan Choi
  • Kommentare: 29
Microsoft Surface Pro Akku austauschen

Schwierigkeitsgrad

Sehr schwierig

Schritte

8

Zeitaufwand

1 - 2 Stunden

Einleitung

Nutze diese Anleitung, um dieden Akku im Microsoft Surface Pro zu ersetzen.

*Um zum Akku zu gelangen richte dich bitte an die Microsoft Surface Pro Teardown Anleitung, um den Bildschirm zu entfernen.

Teardown

  1. SHDqlEDmysWGwlhD
    SHDqlEDmysWGwlhD
    HyGOfRXhUdthHtOJ

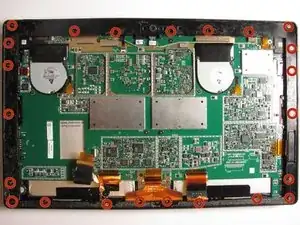

    • Entferne 23 Torx T3 Schrauben von der Bildschirmblende des Surface Pro.

    My Surface Pro 1 needs a T4 screwdriver for these screws.

    Sheryl -

  2. cXySQytDQXOSAMZG

    • Hebe die Bildschirmblende vom Surface Pro ab.

  3. fLh1LuLRtEGPnCq4
    fLh1LuLRtEGPnCq4
    HYlZ5SFNuEAsJ4Kx

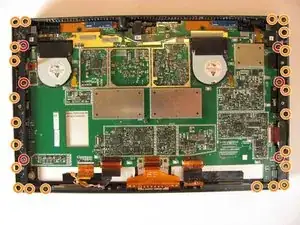

    • Entferne die sechs Torx T5 Schrauben von den Leisten auf beiden Seiten des Rahmens.

    • Entferne 23 Torx T2 Schrauben von den Leisten.

    On my Surface Pro 1, the screws labeled as T5 are T3.

    Sheryl -

  4. ZAuBv4YDTXJfonF5

    • Hebe beide Metallleisten aus dem Rahmen heraus.

  5. 3dBtKYaIQtOIQeKy
    3dBtKYaIQtOIQeKy
    OddFm5vvmP1kI6JH

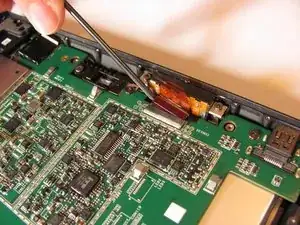

    • Ziehe vorsichtig mit einer Pinzette die acht orangefarbenen Flachbandkabel aus ihren Anschlüssen heraus.

    There’s an additional black ribbon cable (top center in picture) that needs to be unplugged. Also, open the release for the cables before trying to pull them out.

    Sheryl -

  6. 2m6B4STyb4A6Yrle
    2m6B4STyb4A6Yrle
    5QjkuAndAKfIcTKb

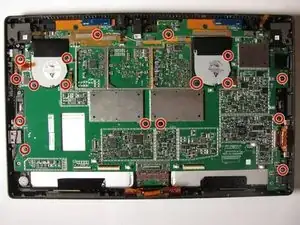

    • Drehe 17 Torx T5 Schrauben auf der Hauptplatine heraus.

    There’s an 18th screw that needs to be removed. It’s in the upper right corner of the picture, but not circled.

    Sheryl -

    The 6 screws holding the fans in place should not be removed (3 on each side - heads look different). They just attach the fans to the motherboard.

    Sheryl -

    One of these screws is thinner than the others, which I didn’t notice until I started screwing them back in.

    Sheryl -

  7. VCx6KSwFdPASmekT

    • Nachdem die Schrauben entfernt sind, kannst du das Logic Board vorsichtig mit der Hand hochheben und herausziehen.

  8. vehwGJgQM4fE2NVw
    vehwGJgQM4fE2NVw
    wAq3OAKLhiSHdONa

    • Fasse den Akkupack mit den Händen fest an. Löse ihn dann mit recht viel Kraft aus der Klebeverbindung heraus.

    This is possible to do. The worst part are all the tiny screws and glue to get the cover and touch screen off. I bought the battery for $45 off of Ebay and a set of four Torx screw drivers for $5.

    Tips:

    check the 12V coming into the main board after the cover is off. You will see a red boot light on the main board flash for a sec. You should hear the tiny fans going.

    Use an external monitor and cables to check the per and boot before putting it all back together.

    Sal V -

Abschluss

Um dein Gerät wieder zusammen zu bauen, befolge die Anleitung in umgekehrter Reihenfolge.
