This is the full bill of materials (BOM) for the 2012 MacBook Pro 15" with Retina Display.

  1. kraYgN3fCGiLsRZ6

    • Pentalobe screw - quantity 10

  2. TLJLCtoKclIZnfpt
    TLJLCtoKclIZnfpt
    yIEahFLImCvOMQJA

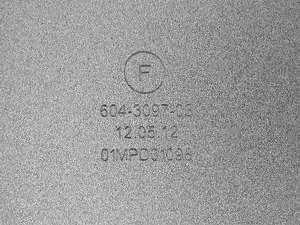

    • Lower case - quantity 1

    • 604-3097-03 12.05.12 01MPD01098

  3. 4qLndTctLR5Q5DBo
    4qLndTctLR5Q5DBo
    dETtJiqdiaWXCq6C

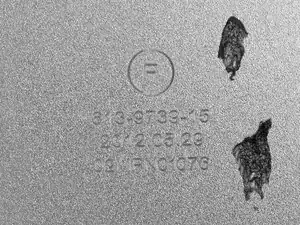

    • Upper case - quantity 1

    • 313-9739-15 2012.05.29 02VPN01076

  4. 1GtAFU1aMPyRcFvW
    1GtAFU1aMPyRcFvW
    oJ4AZVmvxViJ2Wy4

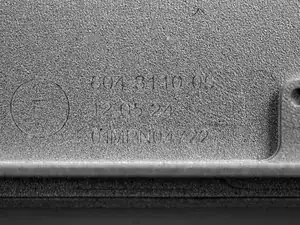

    • Display assembly rear case - quantity 1

    • 604 3110 05 12.05.24 01MPN04722

  5. 2RwQAk6HMixYAxGh
    2RwQAk6HMixYAxGh
    YZYnwMYphbk1xEfD
    nIR2QE6LasmkvvsK

    • Flash memory module - quantity 1

    • Samsung S4LJ204X01 - quantity 1

    • Samsung 213 K9UHGY8U7A - quantity 8

    • Samsung 201 K4T263140F - quantity 1

    • CAT 1BI A3GJ - quantity 1

    • D602A - quantity 1

    • FN1YQ - quantity 1

  6. 5VJN1GkS3QbTtkbQ
    5VJN1GkS3QbTtkbQ
    X31Ad1S24sINWhKe
    4wlNZOWyNb6MGueS

    • AAG 205 VC - quantity 1

    • AAG 209 VC - quantity 1

    • Samsung 213 K9UHGY8U7A - quantity 4

    • CAT 1C1 A3H6 - quantity 1

    • UD 20 24 - quantity 1

    • T5 Torx SSD screw - quantity 1

  7. suKn4GBEXWTiduWW

    • AirPort/Bluetooth board - quantity 1

    • Broadcom BCM4331 - quantity 1

    • Broadcom BCM20702 - quantity 1

    • Skyworks SE5515 - quantity 2

    • SiGe 5019T - quantity 1

    • SiGe 2598L - quantity 1

    • Skyworks SKY3 5404 - quantity 1

  8. IIWdZWSqU1BZTYjK
    IIWdZWSqU1BZTYjK
    lWYrkEGIXMCh221O

    • Skyworks SKY2 5405 - quantity 1

    • T200 UmF8 - quantity 1

    • T200 UqA9 - quantity 1

    • P2303A - quantity 1

    • S31 - quantity 1

    • S70 - quantity 1

    • K - quantity 1

    • T5 Torx AirPort screw - quantity 1

  9. xvHjoRUGJ3HkNDDU
    xvHjoRUGJ3HkNDDU
    ZHjDVW2V5lbWDTqn
    2kHDgYSFiADe2jKw

    • V51L 2130A - quantity 1

    • 66A H1 2FS - quantity 1

    • 23YCUN - quantity 2

    • 216I CC - quantity 4

  10. KEo4BXxhpWTrMbAs
    KEo4BXxhpWTrMbAs
    oFRL5yB5IciaBxlj
    HwhZtJAi5mIke3sE

    • Z2 1209 - quantity 2

    • N1 - quantity 1

    • DP - quantity 1

  11. FMd5rOPQyYedHwWl

    • I/O board - quantity 1

    • Broadcom BCM57100 - quantity 1

    • Parade PS8401 - quantity 1

    • 2557 TI 2138 - quantity 1

    • J8jr - quantity 1

    • 2553 - quantity 1

    • Texas Instruments 21 2065 - quantity 1

    • T250 Vq22 - quantity 1

  12. OXUtetY2ME1VTNDw
    OXUtetY2ME1VTNDw
    sT5i1LIQPQnoIdPW
    b1lSqqdjMI6wwc35

    • 22PFL5 - quantity 2

    • FTF 1N1 A - quantity 1

    • 0502N - quantity 1

    • F54 - quantity 1

    • DP - quantity 1

    • A00G - quantity 1

    • T5 Torx I/O board screw - quantity 2

  13. EuxMKAX1UTFMBfiE
    EuxMKAX1UTFMBfiE
    huCQTwnBFVCTD1Yf

    • I/O board cable - quantity 1

  14. dHvUYhQYEtIn422M

    • HDMI data transfer cable - quantity 1

  15. 1KKs6cpVIroISgIJ

    • NVIDIA GeForce GT 650M GPU - quantity 1

    • Intel Core-i7 3720QM 2.6 GHz processor (Turbo Boost up to 3.6 GHz) with Intel Graphics HD 4000 - quantity 1

    • Hynix H5TC2G83CFR DDR3L SDRAM - quantity 16

    • Intel DSL3510L Thunderbolt controller - quantity 1

    • Intel E208B284 Platform Controller Hub - quantity 1

    • 7137 SAIΔ T18 - quantity 1

    • 3301DE2X - quantity 6

    • LCPG 221D - quantity 2

  16. VYrIqc51vFxASDJA

    • Z710BBN∆ W22C - quantity 1

    • KO214 1K2 61OE - quantity 2

    • 58872D T1 22I A8YV E4 -quantity 2

    • Infineon 4AIRZR F213JB - quantity 1

    • 58873D TI ICE SGKE - quantity 1

    • MXIC 25L6 406E M2I-12GF 3J993600 L121083 - quantity 1

    • National Semiconductor VM21AB 45-EXTJ - quantity 1

  17. VJCMnSeUjpmHFu2J

    • 10 V22 - quantity 5

    • 68 C21 - quantity 13

    • 331 E22 - quantity 1

    • 33 0I23F - quantity 2

    • 33 1E22 - quantity 1

    • R36 213 CBH - quantity 5

    • R68 218 P0C - quantity 2

    • 4R7 213 P2P - quantity 1

  18. IArwiibKbVIH1EOU

    • L8P - quantity 21

    • 330 22J0K - quantity 1

    • R20 209 PML - quantity 2

    • 1R0 211 SHX - quantity 2

    • 2710 - quantity 2

    • 330 - quantity 1

    • 2R2 - quantity 1

    • 220 - quantity 1

  19. GWSUqB5lMYvdADBg

    • 3R3 211 UJC - quantity 1

    • 2.2W 1209CX - quantity 1

    • J8jr - quantity 1

    • LCPG 221D - quantity 2

    • Intersil 8014AIRZR - quantity 1

    • BNW1YK - quantity 2

    • 09BF1MLH - quantity 1

    • LDPR 194L - quantity 1

  20. Kd1OoENaFuTLybsN

    • 638Z0 - quantity 1

    • AG∆W22B - quantity 1

    • AV0 - quantity 1

    • 23 C30 - quantity 1

    • 470 Ω resistor - quantity 1

    • 100 Ω resistor - quantity 1

    • R005 - quantity 1

    • 1010-SMMC-1209 - quantity 3

  21. CuASitsAskhHSywQ

    • 1014 55WY 1206 - quantity 1

    • 1011 5KT0 1208 - quantity 7

  22. PECXXDWMgYoY3rwQ

    • Hynix H5TC2G83CFR - quantity 16

    • Hynix H5GQ2H24AFR - quantity 4

    • Texas Instruments Stellaris LM4FS1AH - quantity 1

    • Renesas R4F2113 H8S series - quantity 1

    • Maxim MAX15119 - quantity 1

    • Cypress Semiconductor CY8C24794-24L - quantity 1

    • TL020403A 6352 102 Z8D202 - quantity 1

    • SMSC USB2512B - quantity 1

  23. cgdUJSrmdV3U4INQ

    • Infineon 6288C HRTZ F207CVT - quantity 1

    • HD3SS212 24KKW R - quantity 1

    • ZTB TI 22I AVG5 - quantity 2

    • R4F2113 XLG A02 AD01359 1216JPN - quantity 1

    • TPS 51980 TI 21K CSD2 - quantity 1

    • Infineon 9AHRTZ F207WW - quantity 1

    • 3957 B62004 - quantity 1

    • CD3210 A0 T1 231 AHHY - quantity 1

  24. EqPGWXi3vHGaeJK5

    • 68 C21 - quantity 16

    • E7 Cn - quantity 4

    • J8eb - quantity 3

    • jSq - quantity 8

    • jSn - quantity 1

    • R005 - quantity 1

    • 100 - quantity 1

    • BMH IAX - quantity 2

  25. nPfjBxFDW456yJgO

    • GAW SMH - quantity 1

    • BQZKTI K1C4P - quantity 1

    • 3349 113G - quantity 2

    • 8OB2CBY - quantity 1

    • 27 000 24111 - quantity 1

    • ZTBTI 221AVG5 - quantity 2

    • VA - quantity 1

    • GAV SP9 - quantity 2

  26. MLrduOHbBA2omVC4

    • P8Z3 - quantity 1

    • +AIH 210 - quantity 1

    • Y2T 201 - quantity 1

    • 0134T E2424 - quantity 1

    • 1484AV 24006 - quantity 1

    • KLD23 3Z014 - quantity 1

    • XDDL - quantity 1

    • SU - quantity 1

  27. uVsxHJqxJWvjNjPK

    • BNW1Y2 - quantity 3

    • V08 - quantity 3

    • KABZ4 - quantity 5

    • 51916 T1

    • BFW2EAB - quantity 1

    • 100 - quantity 2

    • 7615 BAY - quantity 1

    • DP - quantity 2

  28. iSlELtXYlVuTKnXg

    • D1 - quantity 1

    • a2 - quantity 1

    • BQZ T1 K 1C4P - quantity 1

    • 82589AH - quantity 1

    • CFT - quantity 1

  29. rkGnl5vTsDjndfKM

    • T5 Torx logic board screw - quantity 4

  30. sMvRITyeujHj33tH

    • Logic board heat sink - quantity 1

  31. ZL31BUyGCfwYDDev
    ZL31BUyGCfwYDDev
    KIKJLRLAtQe6Ai3A
    tkoX2KRu6VxKfv4o

    • T5 Torx heat sink screw - quantity 2 (black)

    • T5 Torx heat sink screw - quantity 1 (silver)

    • T5 Torx heat sink screw - quantity 1 (silver)

  32. TKVEIPOGWpGnsIqQ
    TKVEIPOGWpGnsIqQ
    AdFJbUmFqX1R2rPQ

    • Heat sink grommet - quantity 1

    • T5 Torx heat sink screw - quantity 6

  33. UuZiJsQEA666JSXB
    UuZiJsQEA666JSXB
    k6fLBgOTcWnPN3ov

    • Left fan - quantity 1

    • Right fan - quantity 1

    • Delta Electronics, Inc. KDB06105HC-HM00 - quantity 1

  34. vERvcKjRvaEZSQ21
    vERvcKjRvaEZSQ21
    VI2XhZLkXXUbyfKk
    RgRdr4GCkuKOMJOi

    • T5 Torx fan screw - quantity 2

    • T5 Torx fan screw - quantity 2

    • T5 Torx fan screw - quantity 2

  35. euvfgB3TjKyMVDcF

    • Left fan duct - quantity 1

    • Right fan duct - quantity 1

  36. PAguIWxrIQbT1Ka5
    PAguIWxrIQbT1Ka5
    LYOiQvHMBM6Llbiq
    FqqxJqLeTTUCBS55

    • Left speaker assembly - quantity 1

    • Right speaker assembly - quantity 1

  37. dh16PimtyYrMONqo
    dh16PimtyYrMONqo
    pylBLUBkbOUgMFcx
    bcsfMMqARbFS6yLY

    • T5 Torx speaker screw - quantity 2

    • T5 Torx speaker screw - quantity 2

    • T5 Torx speaker screw - quantity 2

  38. DdOsM3rjQ2htEykh

    • Dual microphone assembly - quantity 1

    • S885 1332 - quantity 2

  39. XVtQVARIlEZdnK3T
    XVtQVARIlEZdnK3T
    vE3PD3X5LOSrYEf4
    AByDmJSSsxvKdgGy

    • Headphone jack -quantity 1

    • TUH - quantity 1

    • T5 Torx headphone jack screw - quantity 2

  40. OFARqBrGJXQiXGEK
    OFARqBrGJXQiXGEK
    ycfpJ2eaBoygGa2i
    ZNW1akW4gfDGhAuV

    • MagSafe 2 port - quantity 1

    • P7 transistor - quantity 1

    • T5 Torx MagSafe 2 board screw - quantity 2

  41. cvTE1VDwGAPRjqQP

    • Antennna/FaceTime camera cable routing guide - quantity 1

  42. aWcsWUNkRLZQfO46
    aWcsWUNkRLZQfO46
    Bq5biDsOqlGIIM4q

    • Main battery - quantity 1

    • T5 Torx battery board screw - quantity 2

  43. 1NZ2qsDbpjj5gcYt
    1NZ2qsDbpjj5gcYt
    OYKkoQGtRWw5yonJ

    • Texas Instruments BQ20Z451 - quantity 1

    • Parade Technologies 741B 6A2E11 - quantity 4

    • 15AH3 SCSF - quantity 2

    • CJG 21V - quantity 1

  44. 5HUDZDrYNZGAf3Yt

    • Trackpad - quantity 1

  45. WZAXxhJSyOCYEymO
    WZAXxhJSyOCYEymO
    YOJAEABAC1rDAFKq
    LVKgWrUiHYrHJeG6

    • Phillips #00 trackpad bracket screw - silver - quantity 3

    • Phillips #00 trackpad bracket screw - black - quantity 3

    • T5 Torx trackpad set screw - quantity 1

  46. gVXBUabRdbAFA33f

    • Trackpad cable

    • Silicon Storage Technology 25VF020 - quantity 1

    • Broadcom BCM5976A0KUB2G - quantity 1

    • SBO - quantity 1

    • A1 - quantity 6

  47. 6DIrEyShowJCgDID

    • Trackpad backing plate - quantity 1

  48. mtnwrCoHPPDYsbpR

    • Trackpad retaining bracket - quantity 2

  49. Kq1pbQwaHrsBQrwS

    • Keyboard backlight - quantity 1

    • 818-2707 ANSI D 022912 C13 4

  50. AlyEBGGcSURniXtR

    • Rubber display hinge cover - quantity 2

  51. pTPCgWmBPfCcUARw

    • Lower display hinge bracket - quantity 2

  52. ESmo1EGEFO3xTPOJ

    • Upper display hinge bracket - quantity 2

  53. uNDTQOIBtpALHLV5
    uNDTQOIBtpALHLV5
    p6SKuogsSP2hlUlp

    • Retina display front panel assembly - quantity 1

    • Parade Technologies DP635 - quantity 1

    • SM4031 DA1210 SMCP1008 - quantity 1

    • i7990 H213383 - quantity 1

  54. MKivOf5MoxLySoY2
    MKivOf5MoxLySoY2
    ZOV16gqaHiCtcOwJ
    EtYN5ZAvtxQLekkl

    • 416R 8115 - quantity 1

    • GD EB D29 - quantity 1

    • 29P Z3 - quantity 1

    • 21 YN - quantity 1

    • 37 Z3 - quantity 1

    • 5C8 - quantity 2

    • N1 - quantity 1

  55. SYlkSY611wLvQICk
    SYlkSY611wLvQICk
    knIdSuYx3Iqt5QXL
    a2FtpG5BBqm6OlJ5

    • Phillips #00 antenna screw - quantity 7

    • Phillips #00 Retina display middle screw - quantity 6

    • Phillips #00 Retina display corner screw - quantity 4

  56. V5SfHihruIfw1bDO
    V5SfHihruIfw1bDO
    GiQWYWu26IBgTdGr
    JQGBwmARLMUGQW6X

    • Light guide plate - quantity 1

    • 1M

    • AE009A E9-1

  57. u4hr13xgX3mmgFOl

    • White paper backdrop for LED backlights - quantity 1

  58. qhT2I3g2OrldImcJ

    • Diffuser film - quantity 2

    • Prism film - quantitiy 1

    • Polarizing sheet - quantity 1

  59. 3XYKWgLviVRQGMcR
    3XYKWgLviVRQGMcR
    UKOJRGrYQ1HGiTr4

    • Retina display LED backlight strip - quantity 1

    • Career QT003A-S368-0J-L3/QT003A-12A S 1216

  60. CSFWV6MLfCpWLPvA

    • Display bezel rubber dust gasket - quantity 1

  61. KBrRfMDKewc6CLtP

    • Display data cable - quantity 1

    • Left display hinge- quantity 1

  62. rKLuui2ERERToehf

    • Wi-Fi/Bluetooth antenna and cable assembly - quantity 1

    • Right display hinge - quantity 1

  63. boUHIvJXOlAOQ5cQ
    boUHIvJXOlAOQ5cQ
    SQTDfbMMQO6fSbST

    • T9 Torx display hinge screw - quantity 6

    • T5 Torx lower display hinge bracket screw - quantity 2

  64. Gs2KWECDBVSlwWYG

    • Display hinge clutch cover - quantity 1

  65. YqOSYiw6rdfikFuL
    YqOSYiw6rdfikFuL
    tvktthYjpicFmPct

    • 6 magnet display closure assembly - quantity 2

    • Sleep/Wake Magnet - quantity 1

  66. fvMoSBtpesTkajen
    fvMoSBtpesTkajen
    GfDTheN1Qq1X5pD6

    • FaceTime camera and microphone assembly - quantity 1

    • Phillips #00 FaceTime board screw - quantity 2

  67. hUBguuQRTIlEel2H
    hUBguuQRTIlEel2H
    dT3kGV5QxhHmi23i

    • Vimicro VC0358 - quantity 1

    • T240 Mq5J - quantity 1

    • O #1146 LH3 - quantity 1

    • 20826 - quantity 1

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Miroslav Djuric

155377 Reputation

0 Kommentare
