Einleitung

This was a non-functioning keyboard, that was opened in order to expose the PCB.

  1. I6vBXNbLtSKMO5cF

    • Turn the keyboard over so you can see the warranty sticker.

    • Remove the rubber foot from the upper right keyboard stand to expose the machine screw. Then remove the screw.

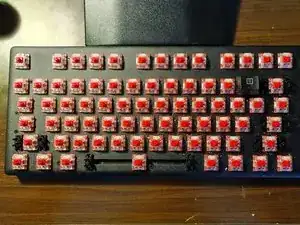

  2. 2KWtMdZZCEfsi1iD

    • Remove all of the keys to expose the 16 black self tapping screws then remove the screws.

    • Be sure to save the screws in one place. They are easy to lose.

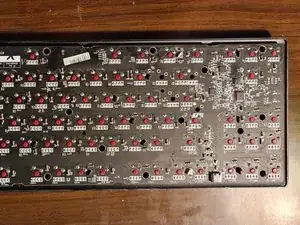

  3. VXN51OGHpQ1urXIQ

    • Gently pry the casing away from they top to expose the PCB.

Abschluss

To reassemble your device, follow these instructions in reverse order.
