Dell Precision M6800 Keyboard Replacement

Geschrieben von: Szymon Milewski
  • Kommentare: 1
Dell Precision M6800 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 15 Minuten

Einleitung

  1. 3VJORwLCVZYOas5b

    • Replacing Dell Precision M6800's keyboard

  2. ONSXuuQRRNe6vMOD
    ONSXuuQRRNe6vMOD
    lpNsalSXfy1G14Ey

    • Before any repair, you should remove battery

  3. EqlRAVQYD6UdMnUR

    • Pry and remove the frame around keyboard (it's a bit lighter than rest of casing).

  4. vu2p1hGmKv5mRAkr

    • Unscrew 4 fastening screws which are at bottom of keyboard

  5. QRBMmUyGcbV6DeSR
    QRBMmUyGcbV6DeSR
    RSLJrnms1wxTVDxY

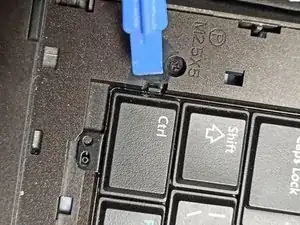

    • Pry out four hooks which are on the sides of keyboard (two per one site)

    • Be carefull to not break of hooks - use constant force and do it slowly

  6. ODBxQbQmDiZXHBrO
    ODBxQbQmDiZXHBrO
    K4IhDMulnQop1yqO

    • Pick up a little keyboard and eject it. Than pick up harder but DO NOT take it out

    • DO NOT take keyboard out, it is connect to the motherboard and you must unhook it in next step

  7. FcCGonRGgqR2dbOx
    FcCGonRGgqR2dbOx
    CnHtFIIi4IDorCqW

    • Pry up the white part of connector (constant for both sides) and eject connecting flex

Abschluss

To reassemble your device, follow these instructions in reverse order.
