Commodore 64 Central Processing Unit (CPU) Replacement

Geschrieben von: Silvanus Clarke
  • Kommentare: 1
Commodore 64 Central Processing Unit (CPU) Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

1 Minute

Einleitung

The Central Processing Unit (CPU) or Micro Processing Unit (MPU) is the 8-bit processor for the Commodore 64.

  1. hTQKhSEIXuTeobMx
    hTQKhSEIXuTeobMx
    XArRRoj5GSlHOVU1
    CWZVFKBPIdlcBgER

    • 1. Remove three 6.75mm ph2 screw heads from the casing

  2. FZosRpMYQtTTP6vx
    FZosRpMYQtTTP6vx
    fBemOm4g5hUsUWtJ

    • 2. Split the case of the C64 open by pulling up on the case towards you

    • Do not pull too hard that you break the clips.

    Good advice, but is there a reliable way of keeping the clips intact?

    coryengel -

  3. c5hrKMIu1EDfkXmx
    c5hrKMIu1EDfkXmx
    DJeRGvubFQiTHdtY

    • 1. Detach the multi-colored wire bundles connected to the motherboard.

  4. HHPUZDT4JYO5ceic

    • Locate the CPU chip which is labeled 'MOS 6510 3782'

  5. KnTPeFSwO1HL4QjH
    KnTPeFSwO1HL4QjH
    OaHalfPNFrTCVyhY

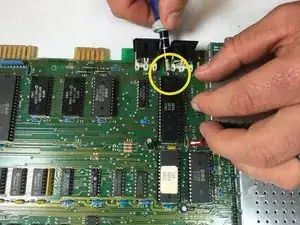

    • 3. Loosen the CPU chip with a Phillips screwdriver. Then use your hand to pry up the CPU chip from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
