In this headlight bulb upgrade and replacement guideline, I will upgrade the LED headlight for the 2019 Toyota Highlander. The primary purposes of this upgrade are to improve the headlight's brightness and increase the driver's night vision. The LED light provides more illumination, and clear white light can help the human eyes see more clearly and less eyestrain than the OEM headlight. It means the drivers will be more comfortable and safer when driving at night.
Before beginning this repair, turn off the car's ignition, place the car in park, and engage the parking brake.
Werkzeuge
-
-
Relocate the washer reservoir nozzle on the left side to get more space for work.
-
Unlock the clip by pressing from both sides of the clip.
-
Keep pressing the clip and pull up the top of the nozzle at the same time to detach it.
-
Use the plastic role to tie it to the oil cap.
-
-
-
Disconnect the high beam electric cable. (Do the same for both side)
-
To disconnect the electric cables, apply the force to the clock and pull it down.
-
-
-
Install the High beam LED light bulbs for both sides.
-
The light bulb has three small mounts on the side, make sure to put it in the right position.
-
When the LED light bulb is in the right spot, turn it clockwise.
-
-
-

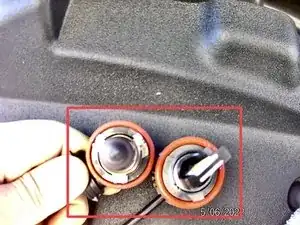

Remove the OEM cover and low beam light bulbs for both sides.
-
To remove the OEM cover of the low beam light, turn it counterclockwise and pull it out.
-
-
-
To disconnect the electric cable of the low beam light, unlock the black plastic clip, and pull it down.
-
-
-
To detach the low beam light bulbs, turn the light bulbs to counterclockwise and pull them out.
-
-
-
Same as the high beam, the low beam light bulbs also have three small mounts. Carefully put the LED light bulbs in the right position of those small mounts, and turn them clockwise to install.
-
-
-
Reconnect all the electric cables. Make sure to connect all the cable with the right electric charges.
-
Pushing on both sides of the connecter until the lock is in the position. (They will make a click sound)
-
-
-
Reinstall the top of the washer reservoir nozzle.
-
Untie the nozzle and place the secure lock in the small hole on the small metal mount.
-
Gently push it down to lock. (It will make a click sound when it's locked)
-
-
-
Result (Before and After) Upgrade.
-
The old light bulbs are a yellow light and the new LED is white light.
-
The upgrade of LED light significantly improved the brightness of the vehicle headlight. It also makes the vehicle look more modern with clear white light. Make sure to buy the right type of light bulb that is compatible with your car. Searching for make and model including the year of the vehicle will help you to find the right parts.
